Skinner Picatinny Rail with Integrated Peep

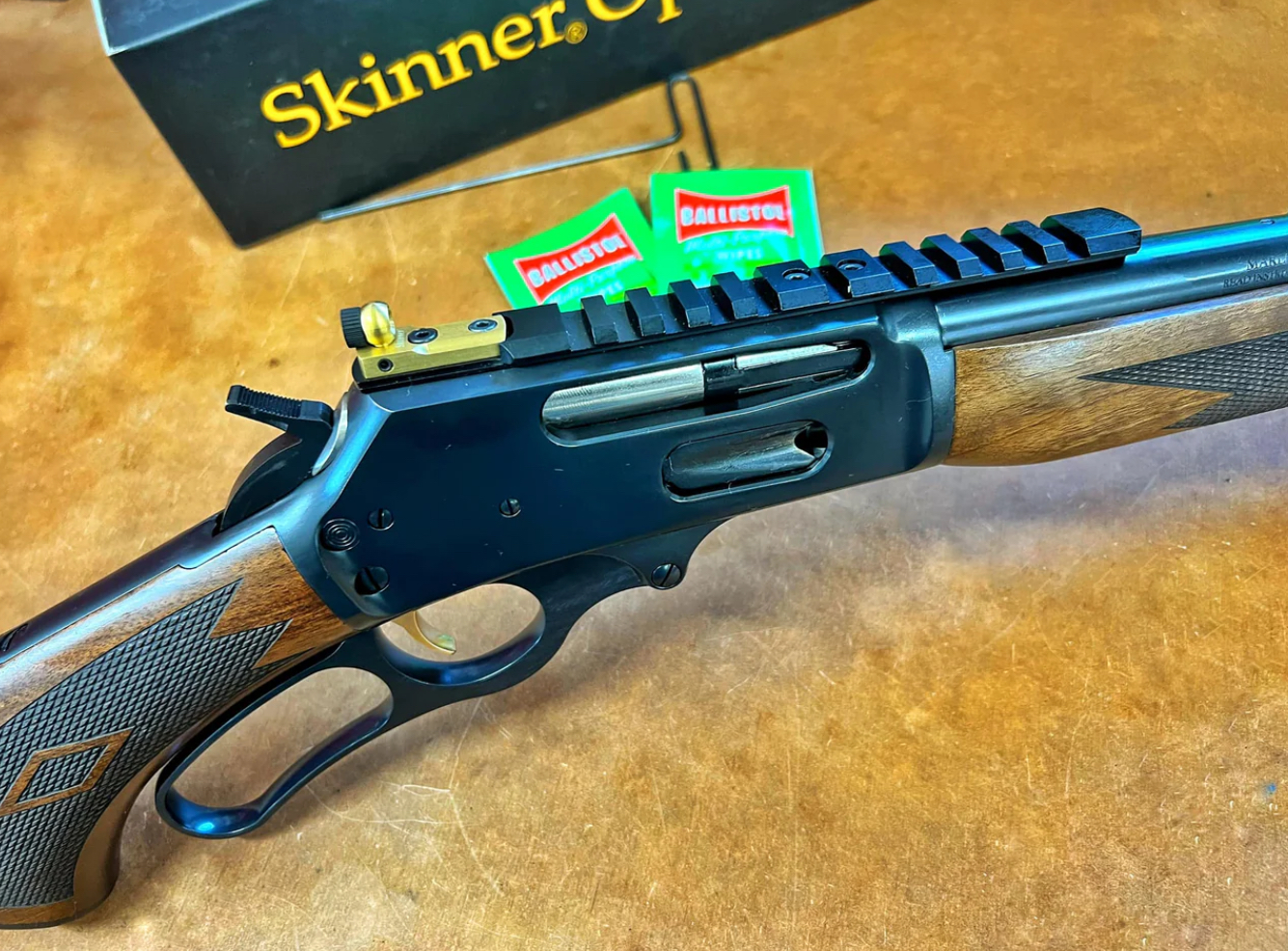

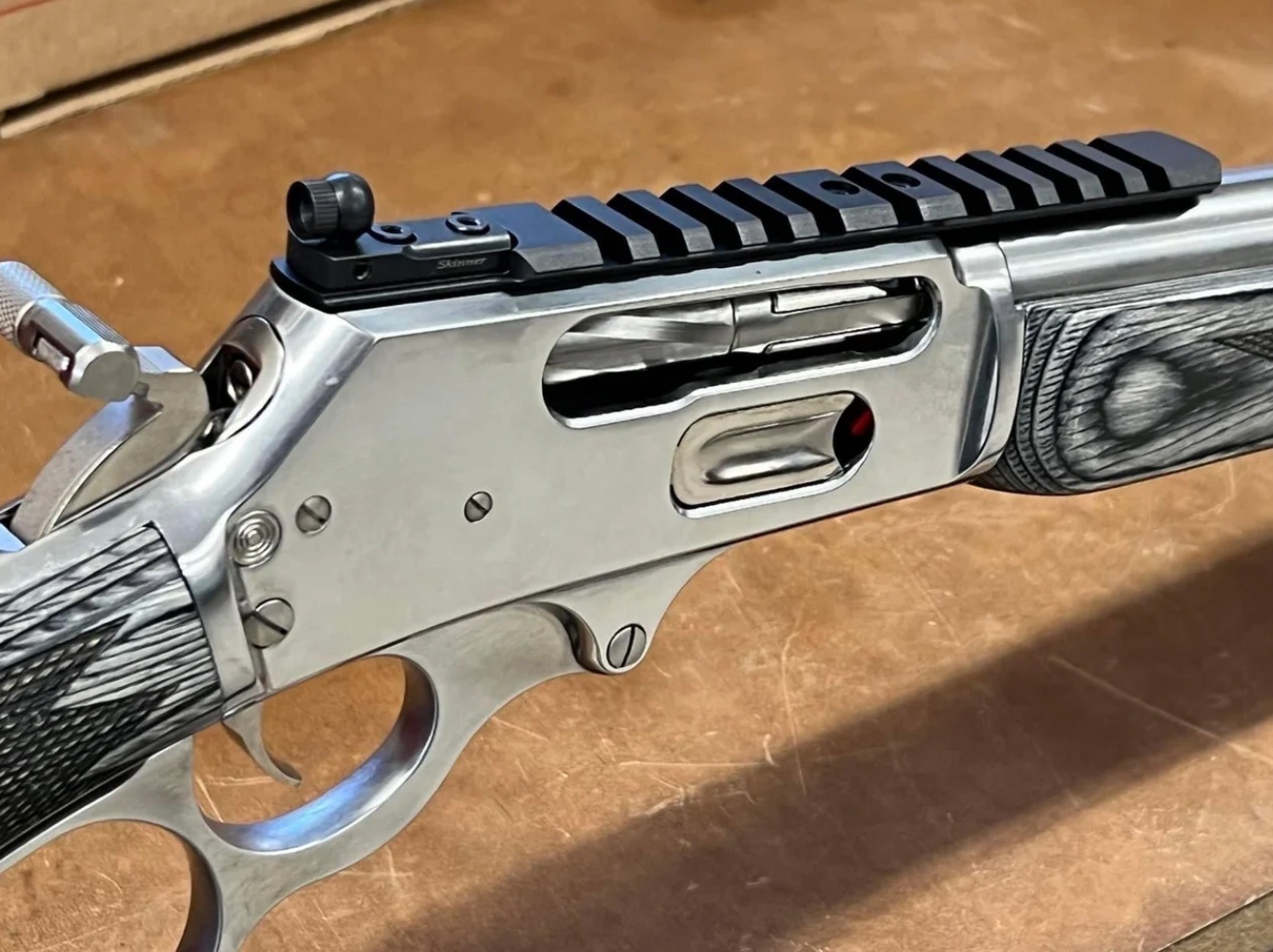

For some time now our customers have been requesting a Weaver/Picatinny rail set up with the super rugged, attractive, proven Skinner Peep Sight integral for a backup sighting system.

• Marlin 1895 / 336 (and variants) (6 1/4″ rail)
• Marlin 1895 (Also fits Rossi R95 45-70) (Full 13″ Scout Rail)
• Marlin 1894  (6 1/4″ Rail)
• Marlin Camp Carbine (6 1/4″ Rail)
• Henry H009/H010/H024 (6 1/4″ Rail)
• Henry Homesteader H027 (6 1/4″ Rail)
• Mossberg 500/800/900 (7″ Rail)
• Rossi R95 (6 1/4″ Rail)
• Rossi R95 45-70 (Full 13″ Scout Rail)
• Ruger American  Classic (Full 13″ Scout Rail)
• Ruger American Gen 2 (Full 13” Scout Rail)
• Tikka T3 (Full 13″ Scout Rail)
• Remington 760/740/742 (6 1/4″ Rail)
• Remington 7600/7400 (6 1/4″ Rail)
• Browning BLR / BAR 3.2 hole spacing
• Browning BLR / BAR 3.3 hole spacing

PEEP SIGHT IS AVAILABLE IN BRASS ON SOME MODELS.

CHOOSE THE BLACK GOLD VERSION.

ROSSI R-95 OWNERS PLEASE NOTE

The Rossi R95 is a Marlin 336/1895 Clone.  All sights/mounts for the 336/1895 Marlins will fit the Rossi R95’s

PLEASE NOTE:  We have been phased out our 7″ rails and moved to a 6 1/4″ rail.  Pictures have not all been updated but look the same except 3/4″ shorter.

These are NOT see through mounts.

Designed for use with standard Weaver/Picatinny style rings.

Use the QD (quick detach) rings for changing from Scope to Peep in the field.

ALSO works well with RED DOT and HOLOGRAPIC sights.

NOTE:  HENRY AND MARLIN USE THE SAME MOUNTS

Rear Sight is machined from solid steel bar stock and fully adjustable for windage and elevation.   Rail is Machined from solid aluminum.

Steel is blued and the rail is Black Anodized.All screws and wrenches included.

Ships with a .096″ aperture installed.

5 aperture sizes available.

REMOVE THE APERTURE FOR A GHOST RING EFFECT

NO GUNSMITHING REQUIRED For Marlins, Ruger and Tikka require 2 holes drilled and tapped

Same height from the top of the receiver to the center of the aperture as our famous Skinner EXPRESS and ALASKAN Sights.  (.435″)

NOTES ON THE FULL LENGTH 13″ RAILS FOR MARLIN 1895

This 13″ Scout Rifle type length, the SKINNER 1895 Full Length Rail fits the bill for those who like options.  Machined from a solid block of Aluminum and finished with a black anodizing.

THIS RAIL FITS THE NEW 1895 MARLINS BUILT BY RUGER

(I have mounted these on some earlier built Marlins but the dovetail spacing varies in positioning.  We do not promise (or warranty) the spacing will be correct for pre RUGER built rifles.)

Will fit the ROSSI R95 45-70

Featuring the Skinner Minimalist Peep Sight in the rear of the rail

Peep Sight Machined from Solid Steel Barstock

Ships with one .096″ aperture installed

(Accepts any of our 5 different size apertures)

This peep is fully adjustable for windage and elevation.  Locks down tight with ZERO wiggle or play and is rugged as the rifle itself.

Peep height above receiver is the same as our EXPRESS and ALASKAN sights.

(Also available for the RIMFIRE American models)

(Also Available for the TIKA T3)

This rail comes with the rear sight, front A2 adjustable front post, screws, wrenches, etc.

Requires two 6-48 holes drilled and tapped for the barrel portion of the mount.

To date, we have found this to fit all short action centerfire models.  (rimfire version available)

fits Gen 1 and Gen 2

Fully adjustable for windage and elevation.

Ships with a .096″ aperture included / 5 aperture sizes available.

Sight and apertures are machined from solid steel bar stock.

Rail is machined from aluminum bar stock.

A2 front post is adjustable for height.

Black anodized finish.

There are two hole spacings for the Browning Rifles.  3.2” and 3.3” (Measured between any of the 4 holes.   Actually 3.19 and 3.31)

Please measure your C-C spacing prior to ordering.
